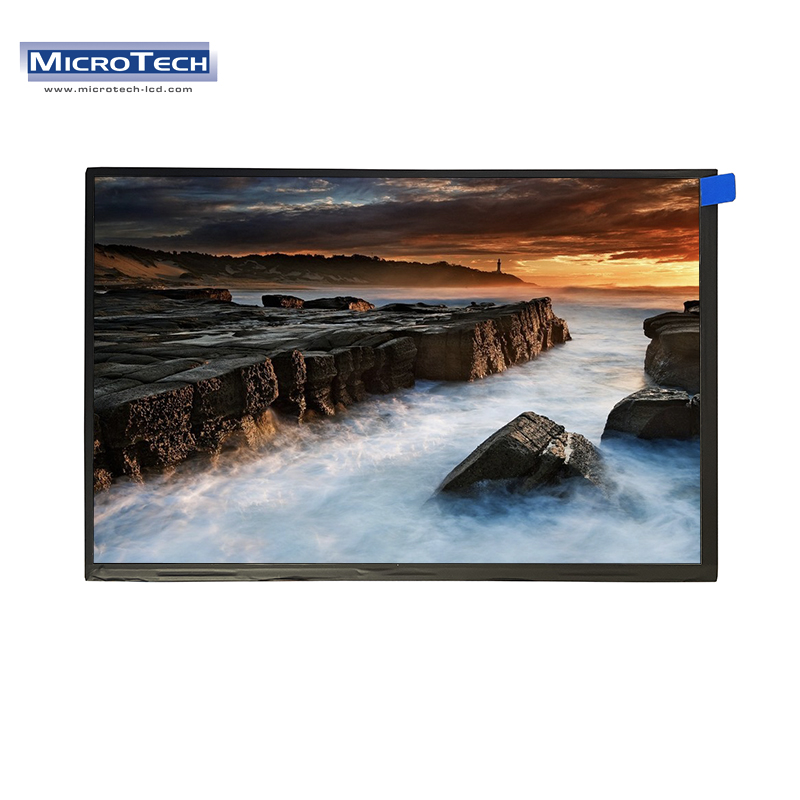

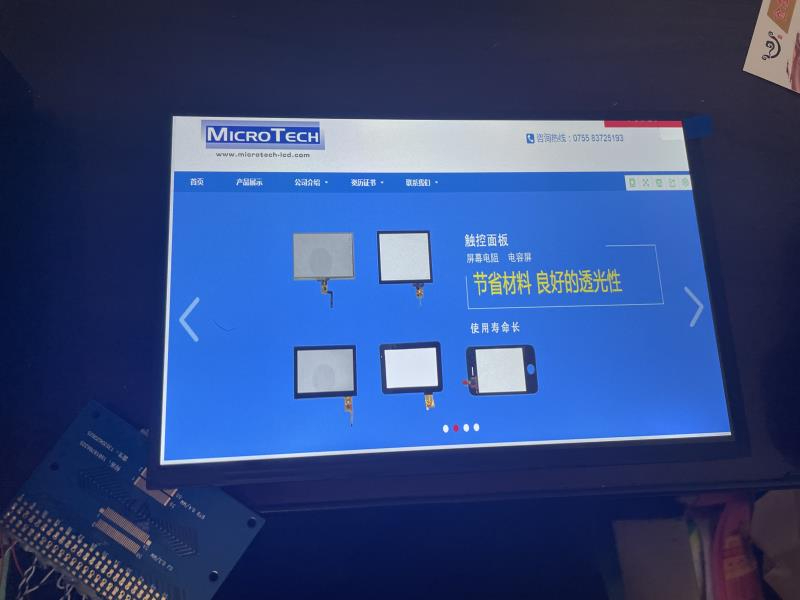

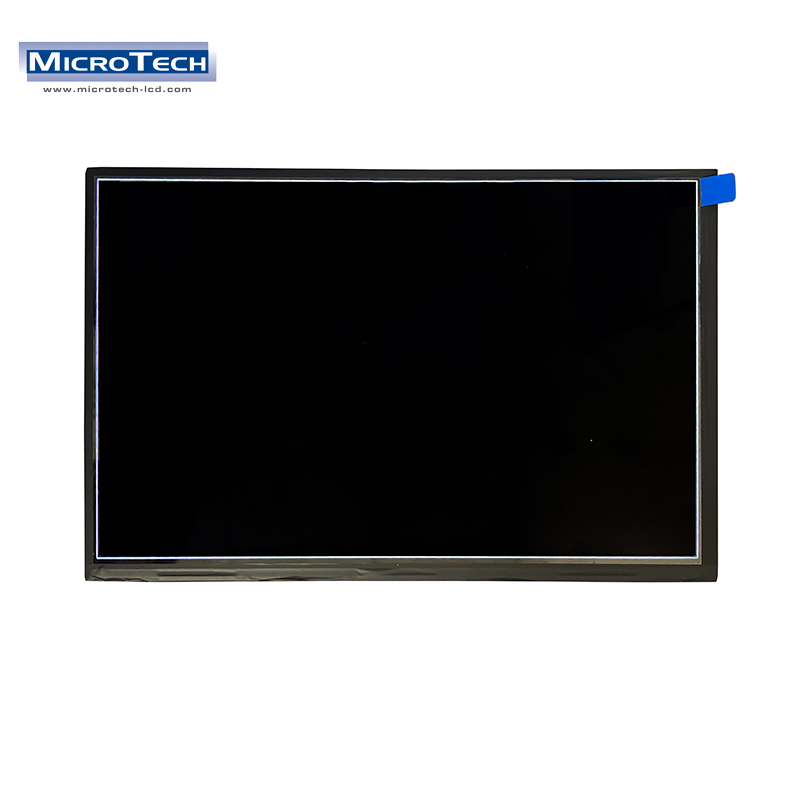

10.1寸 45PIN亮350 IPS 1920*1080雙8通道LVDS TFT LCD液晶顯示屏

類別：10.1寸液晶顯示屏

簡介：

MTF101UG18A-V1

全國咨詢服務熱線:136 0302 8193

立即購買在線咨詢

產品介紹
相關產品

1.1 Introduction   MTF101UG18A-V1 is a color active matrix TFT LCD LCM using amorphous silico n TFT‘s (Thin Film Transistors) as an active switching devices. This module ha s a 10.1 inch diagonally measured active area with WUXGA  resolutions (1920 horizontal by 1200 vertical pixel array). Each pixel is divided  into RED, GREEN, BLUE dots which are arranged in vertical stripe and this  module can display 16.7M colors.

1.2Features
?LVDS Interface;
?8bit display 16.7M colors
?High contrast ratio and Transmittance

1.3Application ? G Industrial

1.4General Specification

The followings are general specifications at the MTF101UG18A-V1.

Parameter	Specification
Active Area	216.8064(H)*135.504(V) mm
Number Of Pixels	1920(H)×1200(V) pixels
Pixel Pitch	0.03764(H)×RGB×0.11292(V) mm
Pixel Arrangement	Pixels RGB stripe arrangement
Display Mode	Normally Black
Display Colors	16.7M(8bit ) colors
Surface Treatment	HC
Contrast Ratio	900:1(typ.)
Viewing Angle(CR>10)	80/80/80/80(typ.)
Response Time	30(typ.)/35(max.) ms
Color Gamut	72%NTSC @BOE BLU
Power Consumption	Panel: 0.6(Typ.) watt @white
Outline Dimension	229.40(H)149.04(V)2.6(typ) mm
