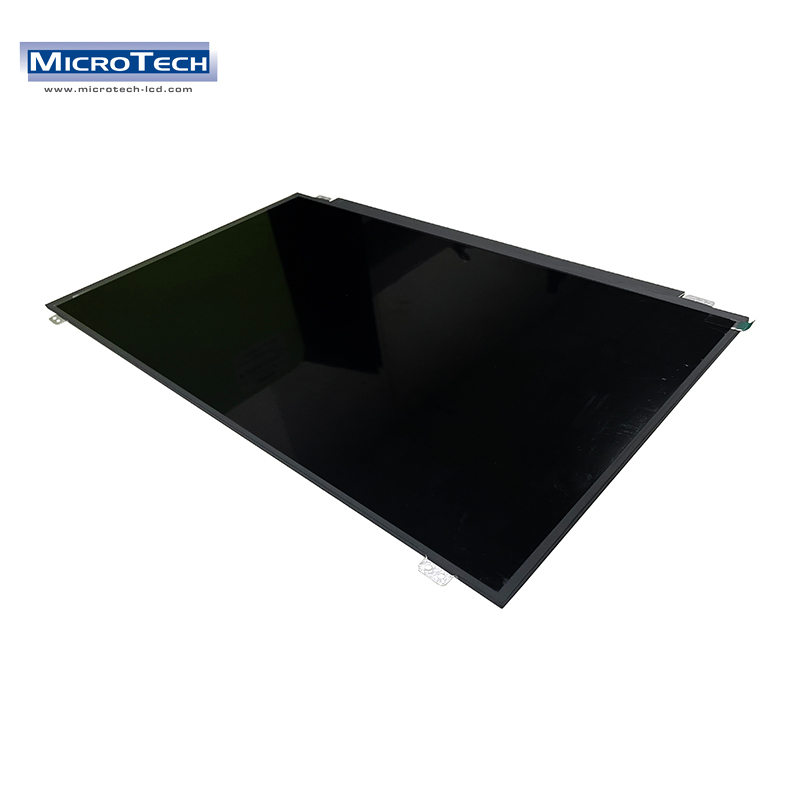

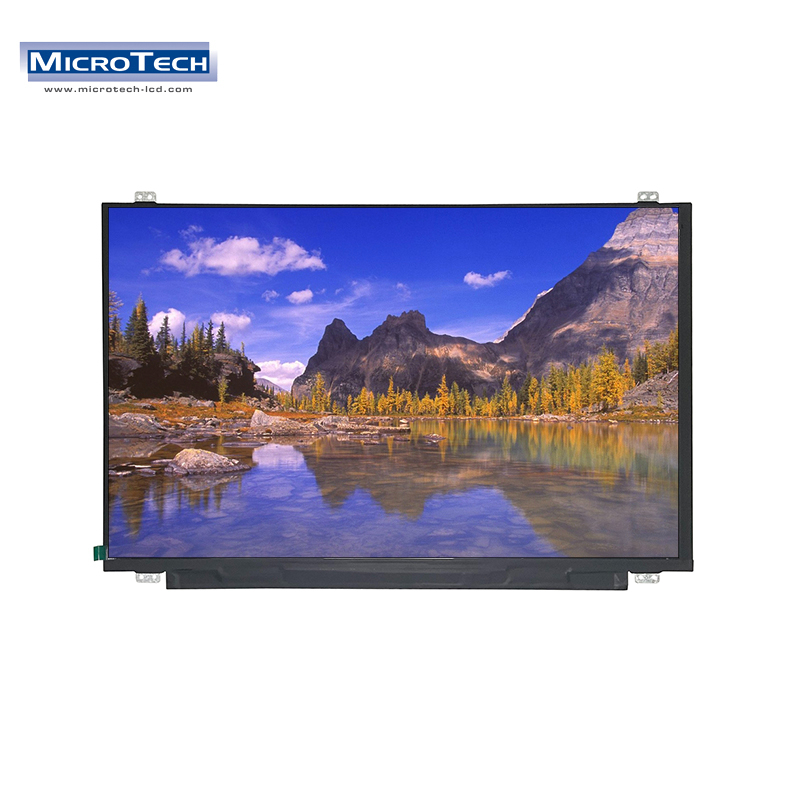

1920*1080 RGB 9串行4平行LED顯示屏面板彩色TFT LCD模塊帶驅動IC

類別：15.6寸液晶顯示屏

簡介：

MTF156FD02A-V1

全國咨詢服務熱線:136 0302 8193

立即購買在線咨詢

產品介紹
相關產品

1. Application

This specification applies to a color TFT-LCD Module,

2. Overview

This module is a color active matrix LCD module incorporating Oxide TFT (Thin Film Transistor).It is composed of a color TFT-LCD panel, driver ICs, a control circuit and power supply circuit. Graphics and texts can be displayed on a 1920×3×1080 dots panel with 262144 colors by using eDP (Embedded Display Port) Ver1.2 interface and supplying +3.3V DC supply voltage for TFT-LCD panel driving. In this TFT-LCD panel, color filters for excellent color performance is incorporated to realize brighter and clearer pictures, making this Module optimum for use in multi-media applications. Optimum viewings are in all directions. 9serial 4paralel LED structure. Backlight-driving LED controller is built in this Module. eDP transfer rate specification: 2.7Gbps/2 lane.

3. Generalspecifications

Item	Specification
Display size	394.38 (Diagonal)mm 15.6 (Diagonal)inch
Active area	344.16(H) × 193.59(V)mm
Pixel Format	1920RGB (H) x 1080 (V) pixels
Pixel pitch	0.17925(H) x 0.17925 (V) mm
Pixel arrangement	RGB Vertical stripe
Display mode	Normally Black
Driving scheme	FFS
Power Consumption	0.561W
Surface treatment of front polarizer	Anti-glarecoating: (3H)
